Description

Features:
Unique trigger design, very comfortable operation sense / Fast and
accurate in reading all ID codes / Programmed to better read
incomplete and fuzzy codes

Service life of button reaches upto 5 million times / Supporting
keyboards of over 20 countries and regions / Full quake-proof,
waterproof, dustproof, anti-knock design and EMI shielding:
Suitable with each kind of industrial environment / 360° all
direction adjustable stainless steel cradle (optional)

Specifications:
Light source: 650nm laser (safe visible light)
Interface: RS232/USB/PS2
Supported Symbologies: Code 39, full ASCII, Coda bar, Industrial
2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 93, Code 128, Code 32,
Standard Code 39, EAN 128, MSI, EAN 8 & 13, UPCA & E, Plessey,
Databar 14, TELEPE.

Precision: = 4mil (0.10mm)
Depth of scan field: 10-80 mm
Operation: Manual/Automatic
Decode speed: 120 times/second
Light intensity: Daylight, 4000Lux
Decode Error Rate: Less than 1/5 million
Print contrast signal = 30°
Scan Angle: Yaw(Skew) 45° Pitch 60°
Cradle (optional): Stainless steel, 360° Adjustable
Safety: Full quakeproof, waterproof, dustproof, anti-knock
design and EMI shielding
Voltage: 5V
Current: Operation 120mA (Idle 10mA)
Scanner Material: Eco-friendly, ABS +Rubber
Operation Temperature: -20°C-45°C
Storage Temperature: -20°C-45°C
Dimension: 170x75x106mm(LxWxH)
Humidity: 5%-85%
Color: Violet / Gray

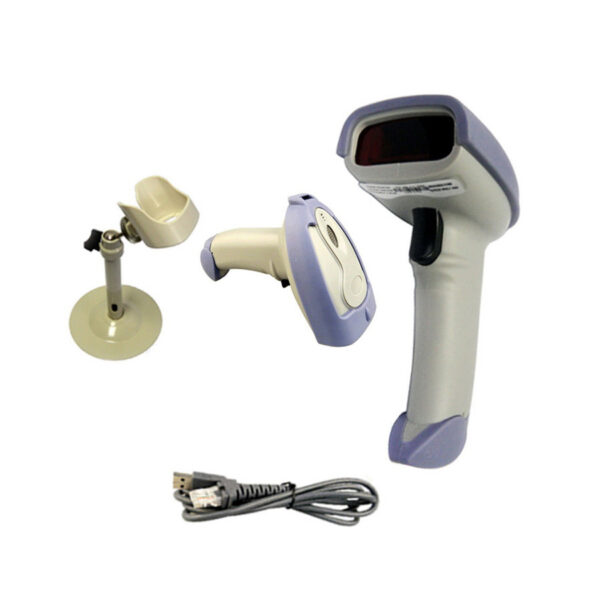

Package Contents:
1 x Laser Barcode Scanner
1 x Cradle Stand
1 x USB Cable
