Description

Features:
· This Multi tester can be used for AC/DC voltage test, DC/AC current test, electric current resistance, (DC amplification) test, Frequency test, two-electrode valve test,NPN PNP transistor test, etc.
· Digital LCD multi-meter, can be used for Ohm AC/DC volt test and overhaul all kinds of circuit boards Auto polarity display/Diode test/Transistor P-N junction test/Transistor HFE test
· 3 ½ Inch Display
· Blue LCD Back light, 1999 counts, updates 2-3/sec
· Auto Turn off &Data hold function
· Low battery voltage indication
· Continuity test with buzzer sound in circuit
· Overload protection on all ranges.
· You can use the Multi meter in more places, such as factory, school lab, home hobby, machine repairing, etc.

Specifications:
· Measuring method:Dual-slope integration A/D Converter
· Operating Environment:0 to 40 °C
· Power: 9V Battery (Not Included)
· Fuse Protection: 200mA/250V

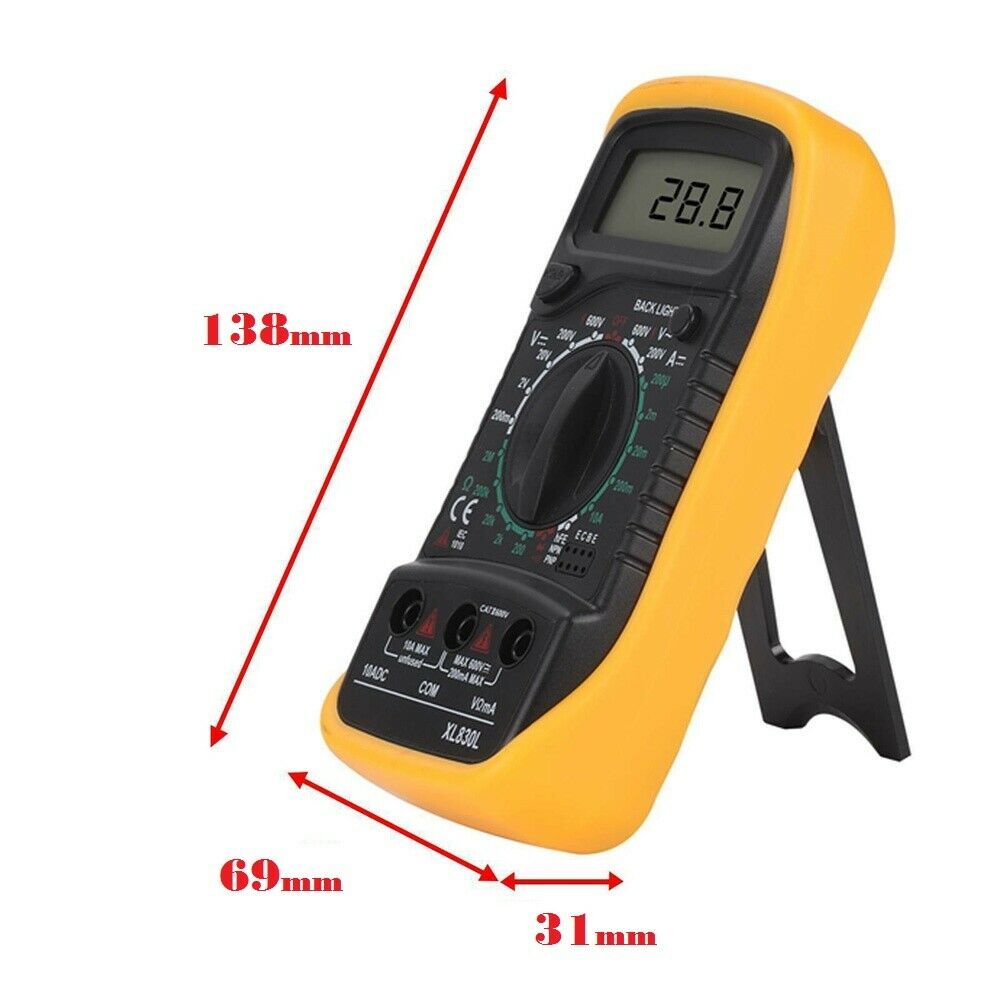

· Size: 138mm x 69mm x31mm
· Weight: Approx. 280g
· Measurement Range 200VmV-600V ±0.5% of rdg ± 2 digits
· Overload Protection: 250V rms

AC Voltage:
Measurement Range 200V-600V ±1.2% ± 10digits
Overload Protection: 600 VDC or rms

DC Current:
Measurement Range DC 2000-10A
±1% of rdg ± 2 digits
Overload Protection: F 200mA / 250V fuse(10A range unfused)

Resistance:
Measurement Range 200 Ohms – 2M Ohms ±0.8%of rdg ± 3 digits
Maximum Open Circuit Voltage: 3.2V
Overload Protection: 250V DC or rms
Transistor: Measurement Range hFE T

Package Contents:
Digital Multi Meter Voltmeter AC DC Current
With Testing Leads
